What Is a Hybrid Solar Eclipse?

A hybrid eclipse is a rare type of solar eclipse that changes its appearance as the Moon's shadow moves across the Earth's surface.

Position of Sun, Moon, and Earth during a hybrid solar eclipse.

Sun, Moon, and Earth during a hybrid eclipse.

The distance between the Moon and the Earth has to be just right to create a hybrid solar eclipse.

Hybrid Eclipse Definition

A hybrid eclipse is a type of solar eclipse that looks like an annular solar eclipse or a total solar eclipse, depending on the observer's location along the central eclipse path.

During a hybrid solar eclipse, the Earth's curvature brings some sections of the eclipse path into the Moon's umbra, the darkest part of its shadow that creates total solar eclipses, while other areas remain outside the umbra's reach, causing an annular eclipse.

3 Shadows, 3 Eclipse Types

Images of a total solar eclipse, a partial eclipse, and an annular eclipse.
Total, partial, and annular solar eclipse.
A hybrid eclipse look like a total solar eclipse in some areas while others see an annular eclipse. Outside the central shadow's path, the Sun appears partially eclipsed.

A solar eclipse occurs when the Moon's shadow falls on Earth. The shadow consists of 3 areas: an umbra, a penumbra, and an antumbra. The type of eclipse we see depends on the part of the Moon's shadow we are in:

  1. The Moon's umbra, the shadow's dark central portion, causes total solar eclipses, where the Moon appears a little larger than the Sun and covers it completely.
  2. The penumbra, the lighter outer part of the shadow, creates partial solar eclipses. Here, the Moon obscures only a part of the Sun's disk.
  3. The antumbra, a half-shadow that begins where the umbra ends, results in annular solar eclipses. During this type of eclipse, the Moon looks a little smaller than the Sun, so the edge of the Sun's disk remains visible around the Moon.

Hybrid solar eclipses involve all 3 areas of the Moon's shadow and combine all 3 types of solar eclipses.

Annular/Total Eclipse

Since the Moon's umbra and antumbra are always surrounded by a penumbra, both total and annular solar eclipses look like partial solar eclipses if you are just outside the path of the central shadow. The same is true for hybrid eclipses.

What is special about this type of eclipse is that the full eclipse, the moment when the Moon is positioned centrally in front of the Sun, looks different depending on your location.

Some observers along the central shadow's path see the same solar eclipse as a total solar eclipse with an eclipse magnitude greater than 1 while others experience it as an annular eclipse, which has a magnitude below 1. For this reason, hybrid eclipses are also called annular/total eclipses.

This may not sound so amazing until you realize that this variation is caused primarily by the Earth's curvature. To understand this connection, let's have a quick look at the Moon's shadows.

Where Umbra Meets Antumbra

Illustration of the Moon's 3 shadows: umbra, penumbra, and antumbra.
The Moon's umbra and antumbra, surrounded by the penumbra.
Together, umbra and antumbra look a bit like an hourglass, if viewed from the side.

Hybrid solar eclipses happen when the Earth travels through the area where the Moon's umbra meets its antumbra.

Because the Moon is smaller than the Sun, both its umbra and its antumbra are V-shaped. The diameter of the umbra decreases with growing distance from the Moon. Where the umbra ends, at the tip of the V, the antumbra starts. This part of the shadow increases in diameter as we move away from the Moon. Together, both shadows look a bit like an hourglass, if viewed from the side (see illustration).

The location where the umbra transitions into the antumbra marks the spot where, if you look at the Sun and the Moon, the apparent sizes of both celestial bodies are exactly equal. If you move towards the Moon from that spot, you enter the umbra and see a total solar eclipse; if you move away from the Moon, you enter antumbral territory, so the Moon begins to appear smaller than the Sun, creating an annular eclipse.

Distance to the Moon Depends on the Location

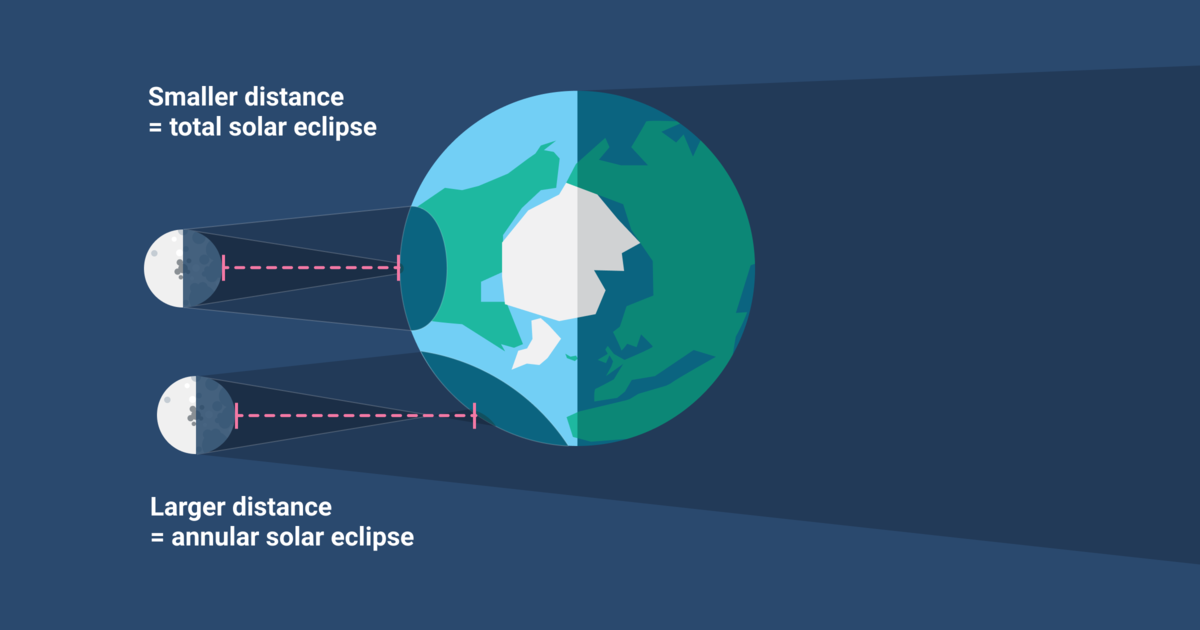

Illustration of the difference in distance between Earth and Moon caused by Earth's curvature.
The distance to the Moon is smallest in the spot facing the Moon directly.
The curvature of the Earth means that locations facing the Moon are closer to it than locations facing away from it.

If the Earth was a flat wall facing the Sun and the Moon, there would be no hybrid solar eclipses. The umbra and antumbra do not overlap, so, depending on the Moon's current distance, it would cast either its umbra or its antumbra on the Earth's flat surface, creating either a total or an annular solar eclipse.

However, since we live on a globe, the Moon's distance at any one moment differs from one place on the Earth's surface to another. It is smallest in locations where the Moon is in the zenith position, meaning straight up. The lower the Moon's altitude, the larger its distance.

Imagine looking at the Moon and the Earth from space. The area of the Earth that faces the Moon directly, where the planet's surface bulges towards the Moon, is the location where the Moon appears in the zenith position and where the distance between the 2 celestial bodies is least. If you move away from that spot, the Earth's surface bends away from the Moon, following the globe's curvature in all directions, so the distance to the Moon increases (see illustration).

Earth's Curvature Changes Eclipse's Look

Since the Moon's umbra only covers a certain distance before turning into the antumbra, the Earth's curvature can bridge the distance between the 2 shadows. When that is the case, the Moon's umbra reaches areas facing the Moon, creating a total solar eclipse there as the Moon looks a little larger than the Sun. Other areas, where the distance is larger, are just beyond the umbra's reach. Here the antumbra can form, and the Moon looks a little smaller than the Sun, causing an annular solar eclipse.

Both the Moon and the Earth are in constant motion, so the Moon's shadow moves across the Earth's surface during a solar eclipse, generally from west to east. This means the eclipse begins as an annular eclipse in areas west of the spot that faces the Moon. It then turns into a total solar eclipse as the shadow approaches that spot, only to switch back again to an annular appearance as it moves away towards the east.

Moon's Distance Can Override Earth's Curvature

Illustration image
Hybrid eclipse with decreasing Moon distance.
If the Moon's distance decreases during a hybrid solar eclipse, the final annular stage may not take place.

In rare cases, the ever changing distance between the Earth and the Moon may break that pattern. If the distance increases or decreases by a certain amount during the event, this may counteract the distance-altering effect of the Earth's curvature enough to allow the Moon's umbra to also reach areas on Earth not facing the Moon directly at the beginning or the end of the event.

If the Moon's from the Earth distance decreases, its apparent size increases. In that case, the hybrid solar eclipse starts as an annular eclipse and changes into a total eclipse—without changing back into an annular eclipse at the end because the smaller distance makes the Moon look large enough to cover all of the Sun's disk (see illustration). If the distance increases, the Moon's apparent size decreases. If that is the case, the appearance of the eclipse changes from total to annular—without the initial annular phase.

For example, during the hybrid solar eclipse on November 3, 2013, the Moon's distance decreased within the event. It started as an annular eclipse, which later transformed into a total eclipse, without changing back to an annular look in its last stages.

Why Hybrid Eclipses Are Rare

The reason why hybrid solar eclipses are comparatively rare—they happen roughly once per decade—is that both the Moon's and the Sun's distance to Earth have to be just right.

For example, if the total distance between the Moon and the Earth is comparatively small, only the Moon's umbra falls on Earth, creating a total solar eclipse in all locations along the central shadow's path. Annular solar eclipses happen when the Moon is relatively far away from Earth, so the antumbra forms before the shadow reaches Earth, even in locations facing the Moon directly. The snag is that both the Sun's and the Moon's distance change continuously. Since the spectrum of distances required for a hybrid eclipse is so narrow, most eclipse configurations are unsuitable for this type of eclipse.

In mathematical terms, if you divide the distance between the Sun and the Earth during the eclipse by the distance between the Moon and the Earth, the result must be a number very close to 400 for a hybrid eclipse to occur.

What Does a Hybrid Eclipse Look Like?

While hybrid solar eclipses represent a rare and interesting type of eclipse on a global scale, they look like standard total, annular, or partial eclipses, depending on the observer's location.

However, since hybrid solar eclipses involve the thinnest parts of the Moon's umbra and antumbra, their main phase, where the Moon is positioned centrally in front of the Sun, is typically very short. As with total and annular eclipses, the Sun appears partially eclipsed before and after the main phase of a hybrid eclipse.
